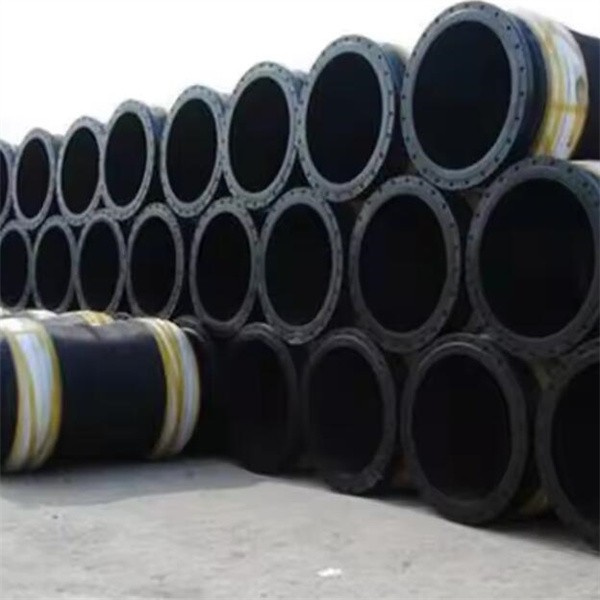

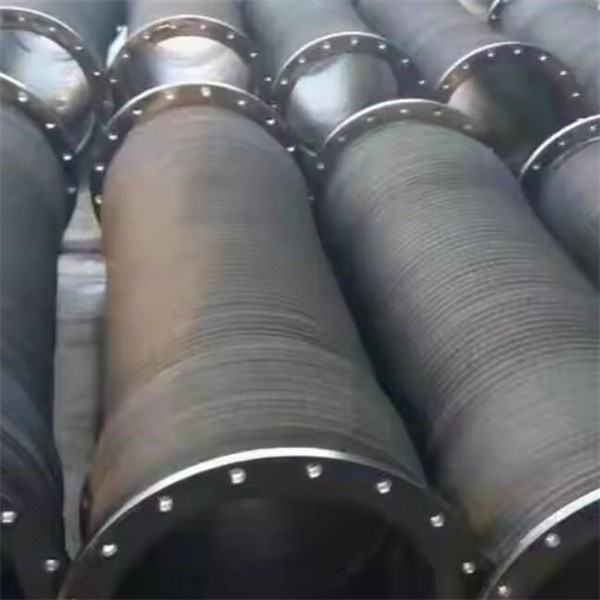

Dredging Rubber Hose
info@pushihose.com
Product Description
Construction:
Inner tube: abrasion and aging resistant synthetic rubber
Reinforcement: high tensile fiber cotton yarn braids with 1 helix wire embedded
Cover: abrasion and aging resistant synthetic rubber
Safety factor: 3:1
Temperature: -20℃(-68℉)to 80℃(+176℉)
Connection:
Flange: flat one, swivel
coupling: C+E, Baur coupling, Pin lug camlock
Customized coupling is acceptable
Material: SS 304, SS316, CARBON STEEL, Aluminium, brass etc
Application:
It is suitable for water pump, river water suction and discharge,River Dredging.
Dredging Rubber Hose Specification
| I.D. | Working Pressure | Burst Pressure | Bending radius | Length max. | ||
| INCH | MM | BAR | PSI | BAR | mm | M |
| 10" | 254 | 3-10 | 45-150 | 9-30 | 1400 | 12 |
| 12" | 304 | 3-10 | 45-150 | 9-30 | 1800 | 12 |
| 14" | 350 | 3-10 | 45-150 | 9-30 | 2000 | 12 |
| 16" | 400 | 3-10 | 45-150 | 9-30 | 2200 | 8 |
| 18" | 450 | 3-10 | 45-150 | 9-30 | 2600 | 8 |
| 20" | 500 | 3-10 | 45-150 | 9-30 | 3000 | 8 |
| 22" | 550 | 3-10 | 45-150 | 9-30 | 3300 | 6 |
| 24" | 600 | 3-10 | 45-150 | 9-30 | 3600 | 6 |
| 26" | 650 | 3-10 | 45-150 | 9-30 | 3900 | 6 |
| 28" | 700 | 3-10 | 45-150 | 9-30 | 4200 | 6 |
| 30" | 750 | 3-10 | 45-150 | 9-30 | 4500 | 4 |
| 32" | 800 | 3-10 | 45-150 | 9-30 | 4800 | 4 |
| 36" | 900 | 3-10 | 45-150 | 9-30 | 5400 | 4 |
| 40" | 1000 | 3-10 | 45-150 | 9-30 | 6000 | 4 |
