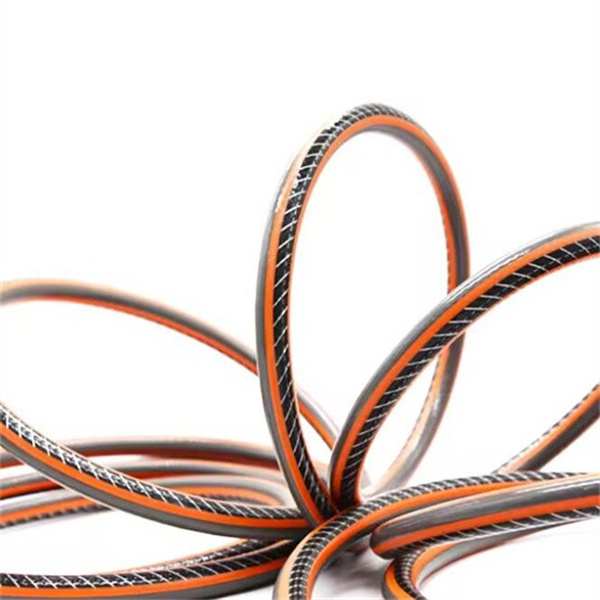

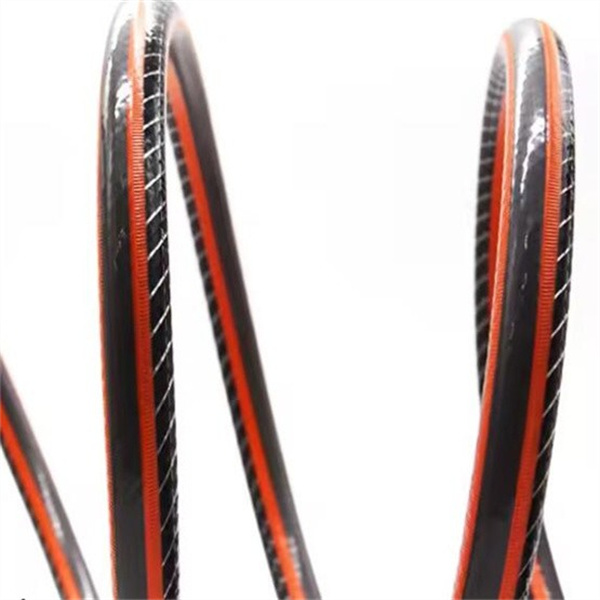

Food Grade Suction Hose
info@pushihose.com
Product Description
Construction:
Material：food grade PVC
Tube and cover: High quality pvc with rigid pvc helix
Application:
For suction and delivery of liquids, powder, granules in industry, agriculture and construction.
Characteristics:
●Economical & flexible
●Abrasion & chemical resistant
●Impact & crush resistant
●Excellent bending radius
●Constructed with rigid spiral helix reinforcement
●Smooth inner construction for unrestricted flow of materials
Temperature Range -15℃ to +65℃
| SIZE | ID | OD | Thickness | Working Pressure | Bursting Pressure | Weight | Length | ||
| inch | mm | mm | mm | bar | psi | bar | psi | kg/m | m/roll |
| 1/2 | 13 | 18±0.5 | 2.5 | 8 | 90 | 18 | 270 | 50 | |
| 5/8 | 16 | 21±0.5 | 2.5 | 8 | 90 | 18 | 270 | 50 | |
| 3/4 | 19 | 24±0.5 | 2.5 | 8 | 90 | 18 | 270 | 0.23 | 50 |
| 1 | 25 | 29±0.5 | 2.5 | 6 | 90 | 18 | 270 | 0.29 | 50 |
| 1-1/4 | 32 | 38±0.5 | 3 | 6 | 90 | 18 | 270 | 0.4 | 50 |
| 1-1/2 | 38 | 44±0.5 | 3 | 6 | 90 | 18 | 270 | 0.52 | 50 |
| 2 | 50 | 58±1.0 | 4 | 5 | 75 | 15 | 225 | 0.9 | 50 |
| 2-1/2 | 63 | 71±1.0 | 4 | 4 | 60 | 12 | 180 | 1.15 | 30 |
| 3 | 75 | 84±1.0 | 4 | 4 | 60 | 12 | 180 | 1.35 | 30 |
| 4 | 100 | 110±1.0 | 5 | 4 | 60 | 12 | 180 | 2.1 | 30 |
| 5 | 125 | 138±1.0 | 6 | 4 | 45 | 9 | 135 | 3.2 | 30 |
| 6 | 152 | 168±1.0 | 8 | 3 | 30 | 6 | 90 | 5.5 | 30 |
